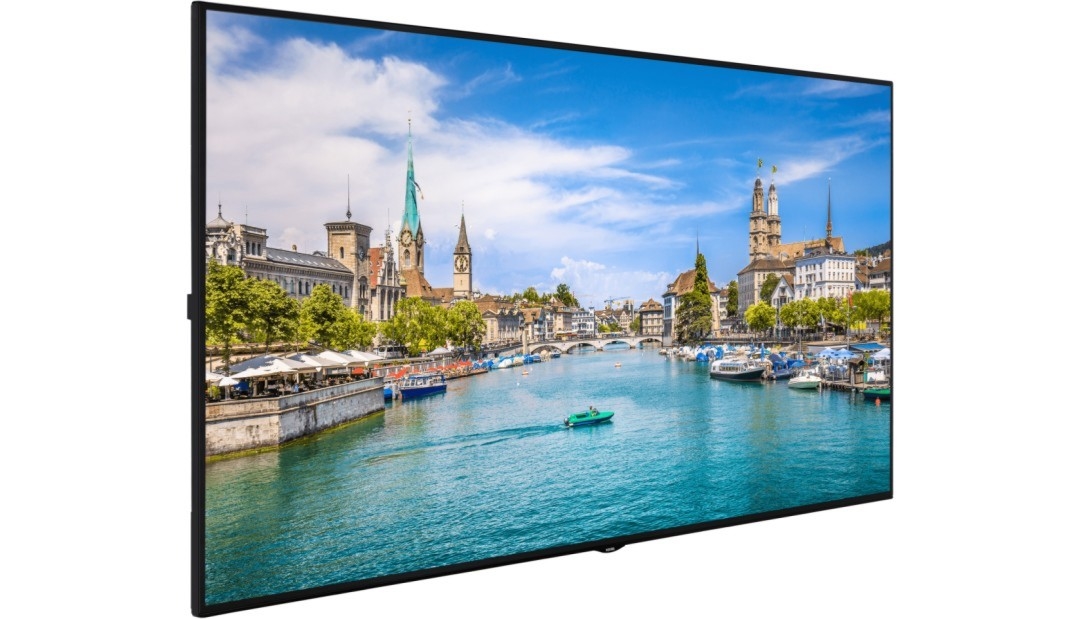

VESTEL XD75D-4H 75" UHD Digital Signage Monitor 16/7, 400nits, MB400 Android, D-LED
Android, VESTEL XD75D-4H 75" UHD Digital Signage Monitor 16/7, 400nits, MB400 Android, D-LED
| XD75D-4H | EAN: 3700410366150 |
| Valmistaja: | Vestel Visual Solutions |
| Valmistajan tuotekoodi: | XD75D-4H |
| Takuu: | 36kk onsite |
| Valmistajan WWW-sivut: | Vestel Visual Solutions |
Screen Size
75"
Panel Technology
IPS
Backlight Type
DLED
Brightness (typical)
400 cd/m²
Native Resolution
3840 x 2160 (16:9) - UHD
Contrast Ratio (typical)
1200:1 (typ.)
Dynamic Contrast Ratio
40000:1
Panel Life Time ( Min. )
30000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1650 (H) × 928 (V) mm
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07G (8bits + FRC)
Color Gamut
72% NTSC
Haze Level
3%
Refresh Rate
60 Hz
Orientation
Landscape
Operation Hours
16/7
Area of Usage
Indoor
Built-in System
Mainboard Model
17MB400VS
Operating System
VAP400 (Vestel Android Platform 400)
Memory
2 GB DDR4
Storage
16 GB eMMC
Additional Storage
Micro SD (up to 1TB)
CPU
Quad-Core ARM Cortex-A55
GPU
ARM Mali-G31 MP2
Wired
10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication
WiFi
WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
Bluetooth
BT 5.1
HTML5 Browser
Vewd
Wireless Display
Miracast

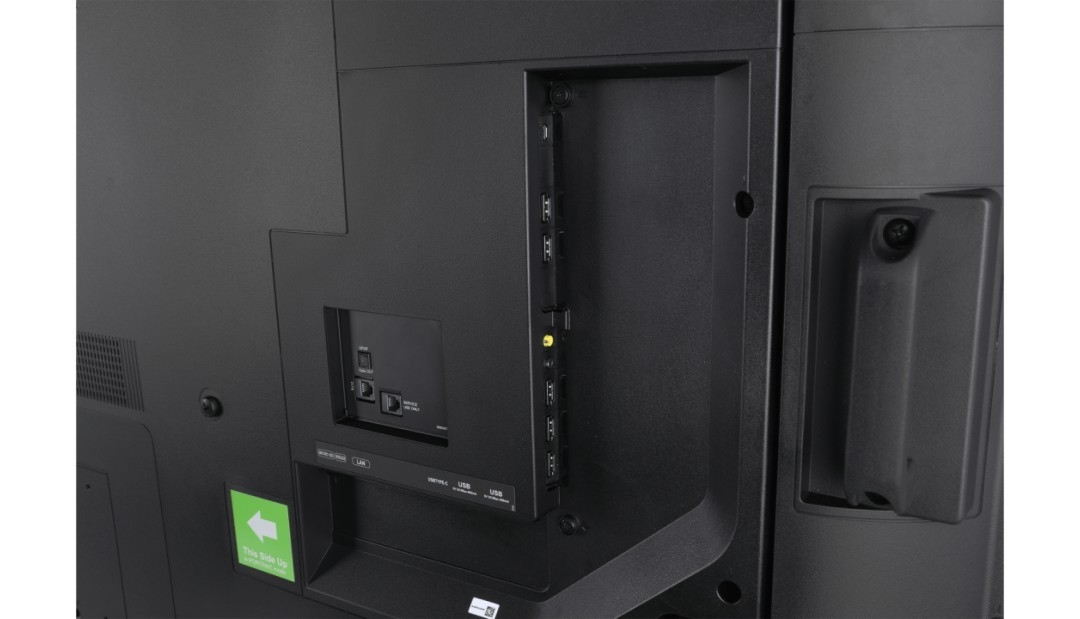

Monitor Connectivity
Video Input
4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB
Video Output
1xHDMI2.0
Audio Output
Headphone, Optic SPDIF
External Control
RS232 (3.5mm jack green), Gigabit Ethernet (RJ45), Service (RJ12)
External Sensor
RJ12
Mechanical
Product Dimensions (WxDxH)
1684 x 73 x 967 mm
Package Dimensions (WxDxH)
1948 x 210 x 1170 mm
Product Weight
37 kg
Package Weight
50.2 kg

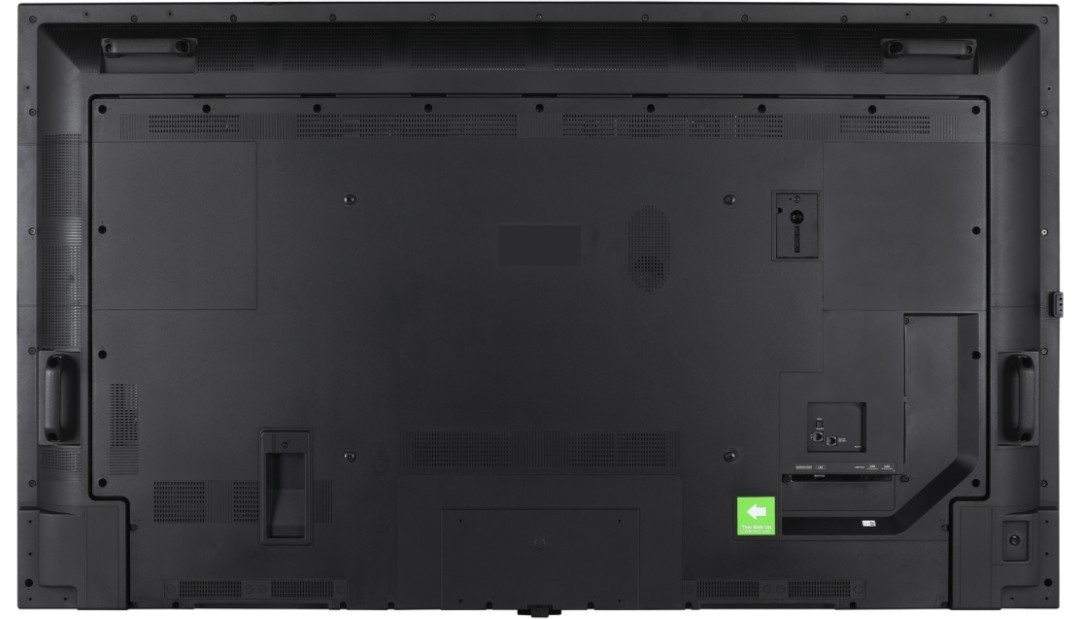

Vesa Mounting
600 (W) x 400 (H) mm M8
Bezel Width
B: 14 mm, T/L/R: 11 mm
Environmental Conditions
Operating Temperature
0-40°C
Operating Humidity
10-90%
Power
Power Supply
110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical
240 W
Maximum
320 W
Deep Standby
?0.5 W
Features
Main Features
HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, , SNMP
Mechanical Features
Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover
Speaker
2x12 W
Accessory
Standard
QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety
Yes
EMC
Yes
CE
Yes
