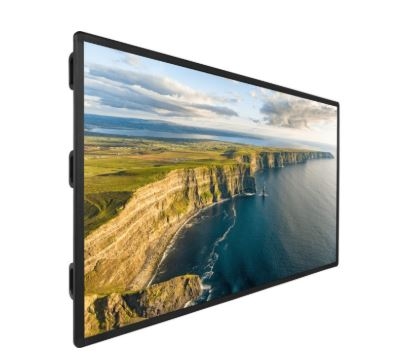

VESTEL XD86G-2H, 86" UHD 16/7 Monitor
Android, VESTEL XD86G-2H (HAN) 86" UHD Digital Signage Monitor. VAP400 (Vestel Android Platform 400) 2 GB DDR4 / 16 GB eMMCResolution: 3840x2160 (UHD)Brightness: 400 cd/m²Haze: 25%Operation: 16/7Interface: HDMI 2.0 / USB 3.0 / RS232 / RJ4
| XD86G-2H | EAN: 3700410368581 |
| Valmistaja: | Vestel Visual Solutions |
| Valmistajan tuotekoodi: | XD86G-2H |
| Takuu: | 36kk onsite |
| Valmistajan WWW-sivut: | Vestel Visual Solutions |
Screen Size
86" - 2174mm
Panel Technology
IPS
Backlight Type
DLED
Brightness (typical)
400 cd/m²
Native Resolution
3840 x 2160 (16:9) - UHD
Contrast Ratio (typical)
1200:1 (typ.)
Dynamic Contrast Ratio
40000:1
Panel Life Time ( Min. )
30000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1895 (H) x 1066 (V) mm
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07G (8bits + FRC)
Color Gamut
72% NTSC
Haze Level
25%
Refresh Rate
60 Hz
Orientation
Landscape
Operation Hours
16/7
Area of Usage
Indoor
Built-in System
Mainboard Model
MB450VS
Operating System
Custom OS (built on Android AOSP)
Memory
2 GB DDR4
Storage
16 GB eMMC
CPU
Quad-Core ARM Cortex-A55
GPU
ARM Mali-G31 MP2
Wired
10/100/1000 Gbps Ethernet, IEEE 802.1X Authentication
WiFi
WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
Bluetooth
BT 5.1
HTML5 Browser
Vewd
Wireless Display
Miracast
Monitor Connectivity
Video Input
2xHDMI2.0
Video Output
1xHDMI2.0
External Control
1xRS232 (3.5mm jack), 1xRJ45 (LAN), 1xIR (3.5mm jack), 1xRJ12 (Service)
USB
1xUSB-A 3.0, 1xUSB-A 2.0
Mechanical
Product Dimensions (WxDxH)
1962 x 82 x 1140 mm
Package Dimensions (WxDxH)
2150 x 367 x 1477 mm
Product Weight
45 kg
Package Weight
70 kg
Vesa Mounting
800 (W) x 600 (H) mm - M8
Bezel Width
B/T/L/R: 25 mm
Environmental Conditions
Operating Temperature
0-40°C
Operating Humidity
10-90%
Power
Power Supply
110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical
380W
Deep Standby
?0.5 W
Features
Main Features
HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP
Mechanical Features
Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo,
Speaker
2x12 W
Accessory
Standard
User Manual, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety
Yes
EMC
Yes
CE
Yes
