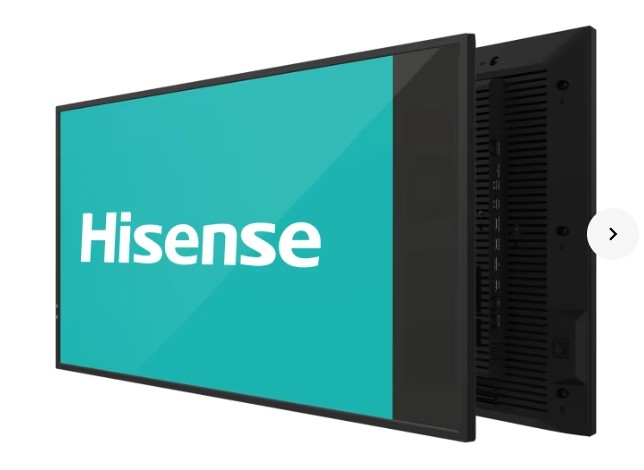

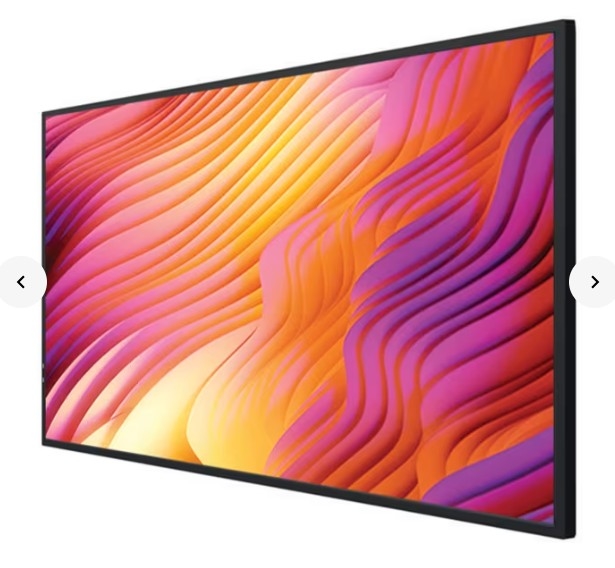

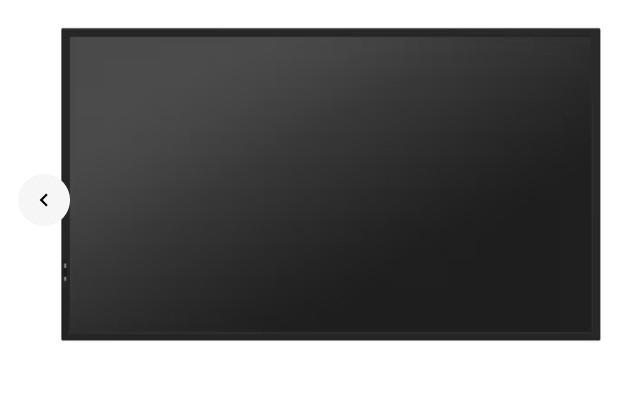

55DM66GE

55DM66GE

Backlight Type: D-LED
Type: IPS
Size: 55"
Resolution: 3,840 x 2,160
Refresh Rate: 60 Hz
Color Depth: 1.07G(8 Bits+FRC)
Brightness (Typ.): 500 nits
Contrast Ratio (Typ.): 1,200:1
Response Time (Typ.): 8 ms
Viewing Angle (Min.): 178° / 178°
Color Gamut (Typ.): 72% NTSC
Haze: 25%
Orientation: Landscape & Portrait
LED Lifetime: up to 50,000 hrs
Operation Hours: 7 Day x 24 Hour
Operating System: Android 14
Processor CPU: ARM Cortex-A73 Quad Core
Processor GPU: Mali-G57 MC1
Memory: 4G DDR4
Storage: 32G EMMC
WiFi: WiFi 6,2.4/5.0GHz dual, 802.11a/b/g/n/ac/ax
Bluetooth: BT5.4
HDMI (Input): x3 (HDMI2.0 x 2 + HDMI2.1 x 1)
USB (Type-C) (Input): /
USB (Type-A) (Input): x 2 (USB2.0 x 1 + USB3.2 Gen1 x 1)
RS232 (3.5mm) (Input): x 1
IR (2.5mm) (Input): x 1
LAN (RJ45) (Input): x 1
HDMI (Output): x 1 (HDMI2.0 x 1)
Audio (3.5mm) (Output): x 1
RS232 (3.5mm) (Output): x 1
Built in Speaker: 10 W x 2
Operating Temperature: 0°C ~ 40°C
Operating Humidity: 20% ~ 80%, non-condensing
Power Supply: AC 100~240V, 50/60Hz
Power Consumption (Typ.): 116 W
Power Consumption (Max.): 220 W
Standby Consumption: less than 0.5W (standby mode)
Bezel Color: Black
Set Dimension (W x H x D): 1,239.7 x 710.2 x 63.3 mm / 48.8 x 28 x 2.5 inch
Bezel Width (T/L/R/B): 10.1mm (T/L/R) / 10.6mm(B)
Net Weight: 13.9 kg / 30.6 lbs
Packing Dimension (W x H x D): 1,387 x 838 x 159 mm / 54.6 x 33.0 x 6.3 inch
Gross Weight: 19.5 kg / 43 lbs
VESA Mount: 300 x 300 mm, 4-M6 Screw
Certification: CB, CE, cTUVus, FCC, RCM, ERP, CEC, South Africa Energy Efficiency
EMC: Class B
Safety: 62368-1
Environment: ENERGY STAR 8.0
IP Rating: IP5X
Accessoies: Quick Setup Guide, Warranty Card, Power Cord, Remote Controller & Battery, RS232 Converter Cable
