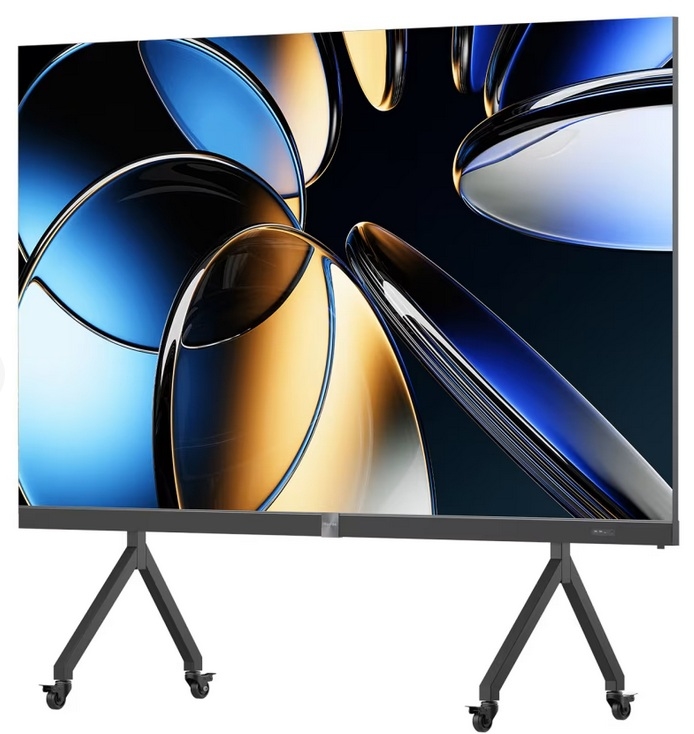

HAIO136GE

Physical
Pixel Pitch: 1.5625 mm
Pixel Configuration: Flip-Chip COB (1 Red, 1 Green, 1 Blue)
Screen Resolution (W x H): 1,920 x 1,080
Module Dimensions (W x H): 150 x 337.5 mm / 5.9 x 13.3 inch
No. of Modules Per Screen (W x H): 20 x 5 (Total 100 Pcs LED Modules)
Screen Dimensions (W x H x D) (With Screen Frame): 3,004 x 1,774.5 x 32.3 mm / 118.3 x 69.9 x 1.27 inch

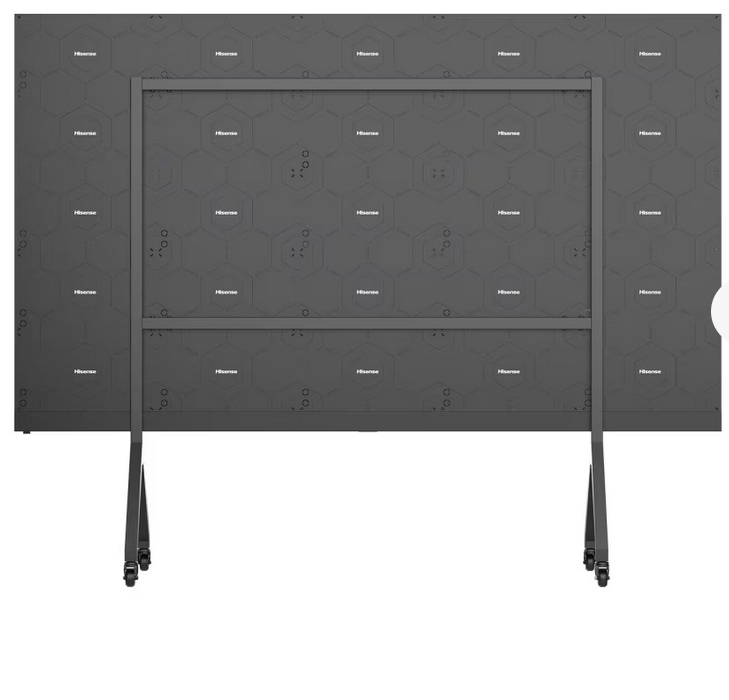

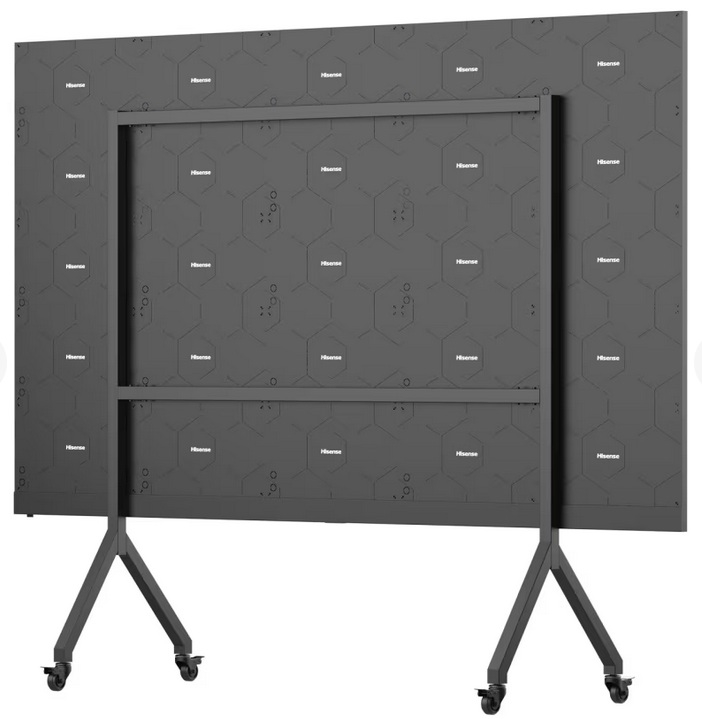

Product Dimensions (With Mobile Cart): 3,004 x 2,439.5 x 911.3 mm / 118.3 x 96.04 x 35.88 inch
Panel/Cabinet Dimensions (W x H x D): 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
Weight (per panel / screen): 4 kg / 110 kg // 8.82 lbs / 242.55 lbs
Pixel Density: 409,600 pixels/m2
Flatness of Cabinet (mm / inch): ± 0.05 mm
Cabinet Material: Die-cast Aluminium
Grey Level: 14 bits
Colour Gamut: >113% DCI-P3
Aspect Ratio: 16:9
Service Access: Front

Optical
Brightness (max./peak.) (steady-state peak / instantaneous peak): 1,000 nits // 1,400 / 2,100 nits
Brightness - Default (Adjustable): 600 (100 - 1,000) nits
Contrast Ratio: 52,000: 1@10lux
Visual Viewing Angle (H x V): 165° x 150°
Brightness Uniformity: 98%
Color Uniformity: + 0.003 Cx, Cy
Processing Depth: 14 bits
Color Temperature - Default (Adjustable): 6,500 K (2,000 ~ 9,300 K)

Electrical
Power Supply Voltage: 220 - 240 V, 50/60 Hz
Average Power Consumption (W/Screen): ?850@1,000nits / ?750@600nits
Max Power Consumption (W/Screen): ?1,720@1,000nits / ?1,250@600nits
Refresh Rate: 3,840 Hz (typ.)
WiFi: 2.4G & 5G
Bluetooth: 5.2
Input:
- HDMI(2.0) IN x3 (internal), HDMI IN1 supports eARC
- USB2.0 x1 (internal)
- USB3.0 x2 (front)
- Type-C (not full function) x1 (front)
- RS232 x1 (internal)
- LAN x1 (internal)
- OPS slot x1 (rear)
Output:
- HDMI(2.0) LOOP x1 (internal), HDMI IN2 signal compatible
- SPDIF x1
- Audio Out w/o
