HAIO163GE

Physical
Pixel Pitch 1.875 mm
Pixel Configuration Flip-Chip COB (1 Red, 1 Green, 1 Blue)
Screen Resolution (W x H) 1,920 x 1,080
Module Dimensions (W x H) 150 x 337.5 mm / 5.9 x 13.3 inch
No. of Modules Per Screen (W x H) 24 x 6 (Total 144 Pcs LED Modules)
Screen Dimensions (W x H x D)
(With Screen Frame)
3,604 x 2,112 x 32.3 mm
141.8 x 83.1 x 1.27 inch

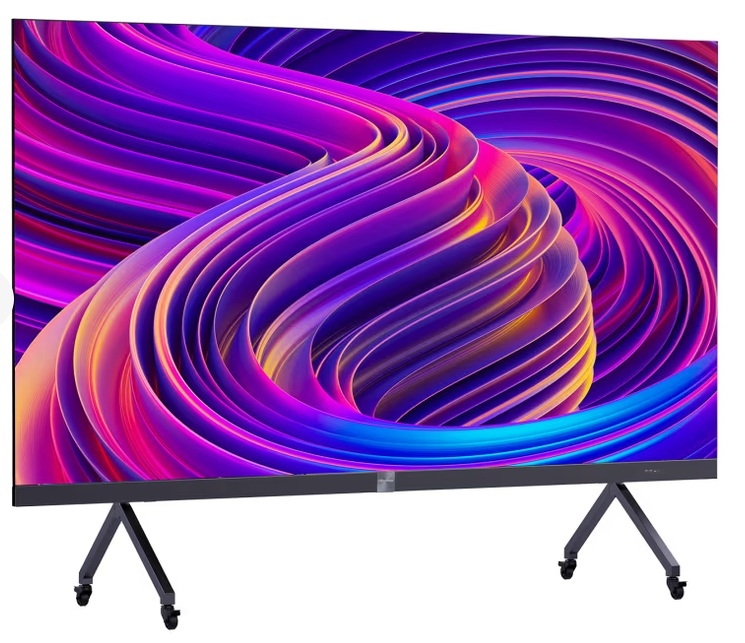

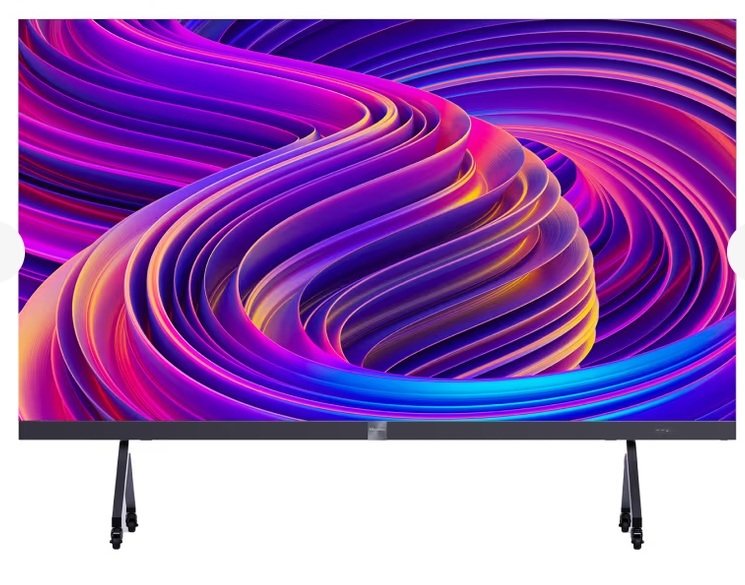

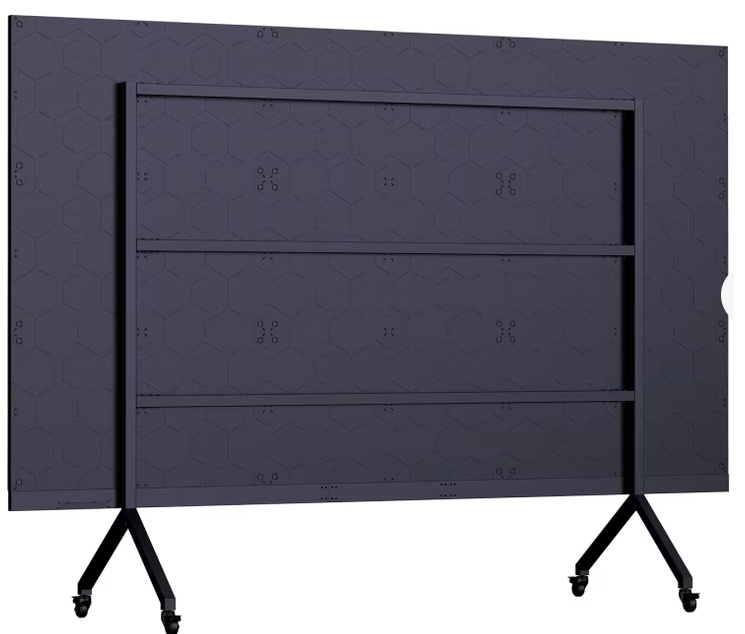

Product Dimensions (With Mobile Cart) 3,604 x 2,662 x 1,086.8 mm
141.89 x 104.8 x 42.79 inch
Panel/Cabinet Dimensions (W x H x D) 600 x 337.5 x 32.3mm
23.6 x 13.3 x 1.27 inch
Weight (per panel / screen) 4 kg / 162 kg // 8.82 lbs / 357.15 lbs
Pixel Density 284,444 pixels/m2
Flatness of Cabinet (mm / inch) ± 0.05 mm
Cabinet Material Die-cast Aluminium
Grey Level 14 bits
Colour Gamut >116% DCI-P3
Aspect Ratio 16:9
Service Access Front

Optical
Brightness (max./peak.)
(steady-state peak / instantaneous peak)
800 nits
900 / 1,500 nits
Brightness - Default (Adjustable) 600 (100 - 800) nits
Contrast Ratio 30,000: 1@10lux
Visual Viewing Angle (H x V) 165° x 150°
Brightness Uniformity 98%
Color Uniformity + 0.003 Cx, Cy
Processing Depth 14 bits
Color Temperature - Default (Adjustable) 6,500 K (2,000 ~ 9,300 K)

Electrical
Power Supply Voltage 220 - 240 V, 50/60 Hz
Average Power Consumption
(W/Screen) ?1,010@800nits / ?920@600nits
Max Power Consumption (W/Screen) ?1,860@800nits / ?1,620@600nits
Refresh Rate 3,840 Hz (typ.)
WiFi 2.4G & 5G
Bluetooth 5.2
Input
HDMI(2.0) IN x3 (internal), HDMI IN1
supports eARC
USB2.0 x1 (internal)
USB3.0 x2 (front)
Type-C (signal) x1 (front)
RS232 x1 (internal)
LAN x1 (internal)
OPS slot x1 (rear)
Output
HDMI(2.0) LOOP x1 (internal), HDMI IN2
signal compatible
SPDIF x1
